Flat Woven

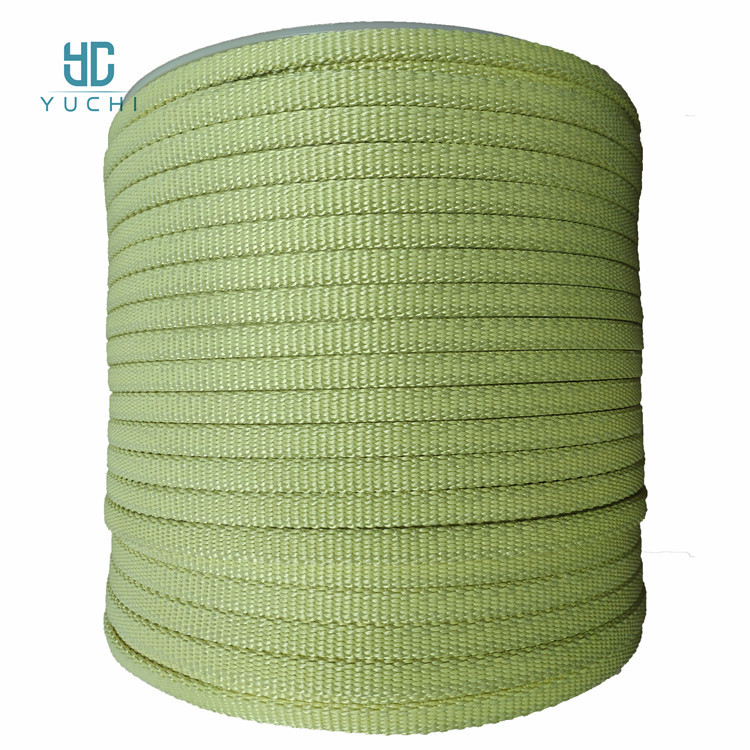

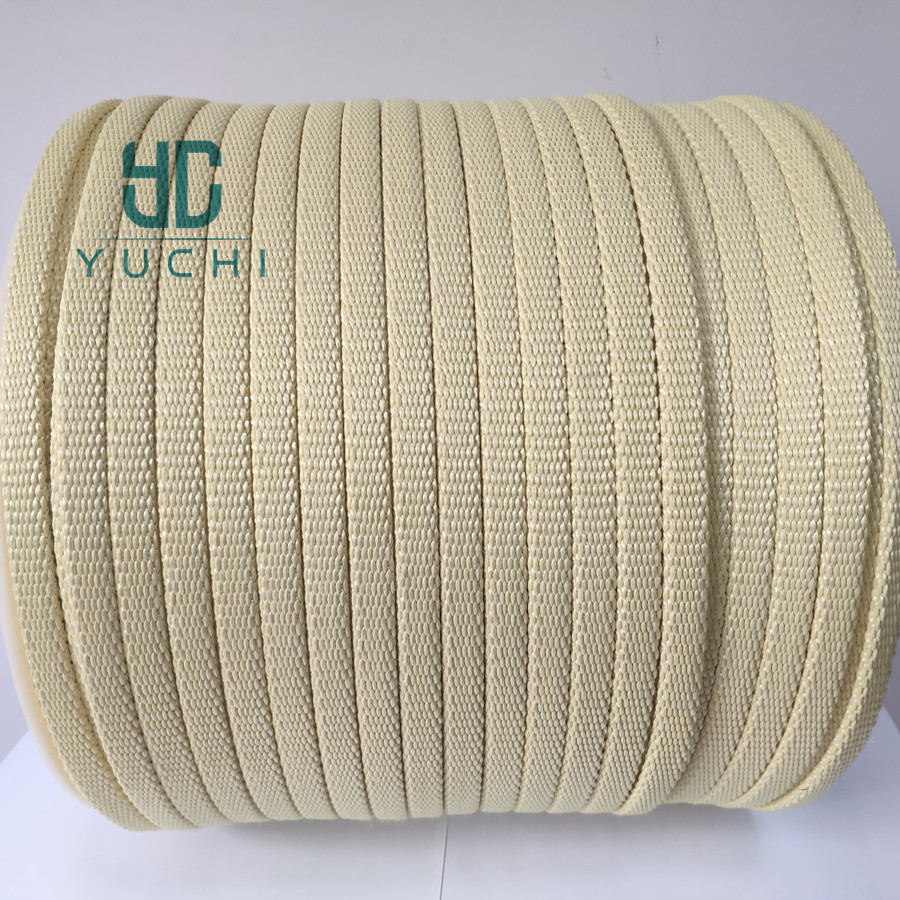

Kevlar Tape, Roller Ropes used in Glass Tempering Furnace 12*3mm
100% kevlar aramid yarn ropes Braided Kevlar aramid rope for glass
tempering machine furnace
TamGlass Landglass Northglass Mountain Glass Jinglass Tempering
Furnace
Product Introduction:
The outstanding performance of Kevlar® fiber webbing is its high
temperature resistance.
It can withstand high temperature up to 330 °C for a long time, and
carbonization begins to occur at 427 °C, and can withstand
instantaneous high temperature of 560 °C.
The super tensile performance & the excellent high temperature
resistance, that ordinary fiber webbing does not have make it the
favourite of many high temperature and high strength fields.

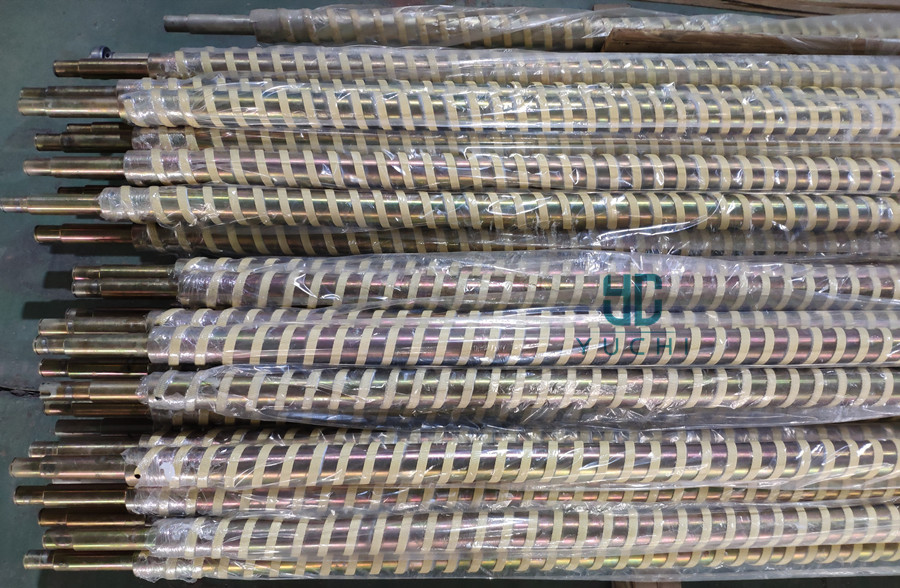

Aramid ropes are wrapped on the rollers of the tempering furnace to
facilitate the rapid transportation of high temperature glass.
After the glass is heated in high temperature in the tempering
furnace, it is cooled rapidly by the wind grid, and the Kevlar
roller rope can effectively protect the high temperature glass from
contacting the low temperature metal roller table without cold
explosion and no scratch.
Application:
Industrial use, clothing, high temperature, high strength, fire
resistance, wear resistance, etc.
Kevlar Rope
Regular sizes:
| Flat Rope Size (Can be customized) |
| Model | Width (mm) | Thickness (mm) |
| 8 x 3 | 8 | 3 |
| 8 x 4 | 8 | 4 |
| 10 x 3 | 10 | 3 |
| 10 x 4 | 10 | 4 |
| 10 x 5 | 10 | 5 |
| 12 x 3 | 12 | 3 |
| 12 x 3.5 | 12 | 3.5 |
| 12 x 4 | 12 | 4 |
| 12 x 4.5 | 12 | 4.5 |
| 12 x 5 | 12 | 5 |
| 12 x 5.5 | 12 | 5.5 |
| 13 x 2 | 13 | 2 |
| 13 x 3 | 13 | 3 |
| 13 x 3.5 | 13 | 3.5
|
| Square Rope Size (Can be customized) |
| Model | Width (mm) | Thickness (mm) |
| 4 x 4 | 4 | 4 |
| 5 x 5 | 5 | 5 |
| 5.5 x 5.5 | 5.5 | 5.5 |
| 6 x 6 | 6 | 6 |
| 8 x 8 | 8 | 8 |
| 10 x 10 | 10 | 10 |
| 12 x 12 | 12 | 12 |
| Round Rope Size (Can be customized) |
| Dia 2mm | Dia 3mm | Dia 4mm |
| Dia 5mm | Dia 6mm | Dia 8mm |
| Dia 10mm | Dia 12mm | Dia 20mm
|
Size can be customized with special specifications
Detailed Photos:
Product Features:
- Woven with kevlar aramid fibers,
- Strong tensile strenght,
- Fire retardant,
- High temperature resistance 560℃,
- Wear resistance,
- Cut resistance,
- Corrosion resistance,
- High pressure resistant,
- High intensity,
- Abrasion resistant,
- Heat resistant,
- Chemical resistant,
- Electrical Insulator,
- Good mechanical property.
Product Details:
If there is any problem with the
quality, we are responsible for returning
it!
Packing & Delivery:
MOQ, 1 piece = 1 roll (250meters),
we are professional manufacturer with many years experiences,
self-produced direct sales, multi-specification, large-scale stock
in stock, uninterrupted circulation supply!
We promise: 100% high-quality aramid yarn production, refusal to
adulterate, cut corners, and serve our customers with quality and
reputation.
